Skid plate install
Posted by phlat65
Sean Medcroft Elite Moderator Location: Edmonds, Washington Join Date: 02/12/2009 Age: Possibly Wise Posts: 1,802 Rally Car: Building a Merkur |
Posted these on the Merkur forum, figured I would post them here.

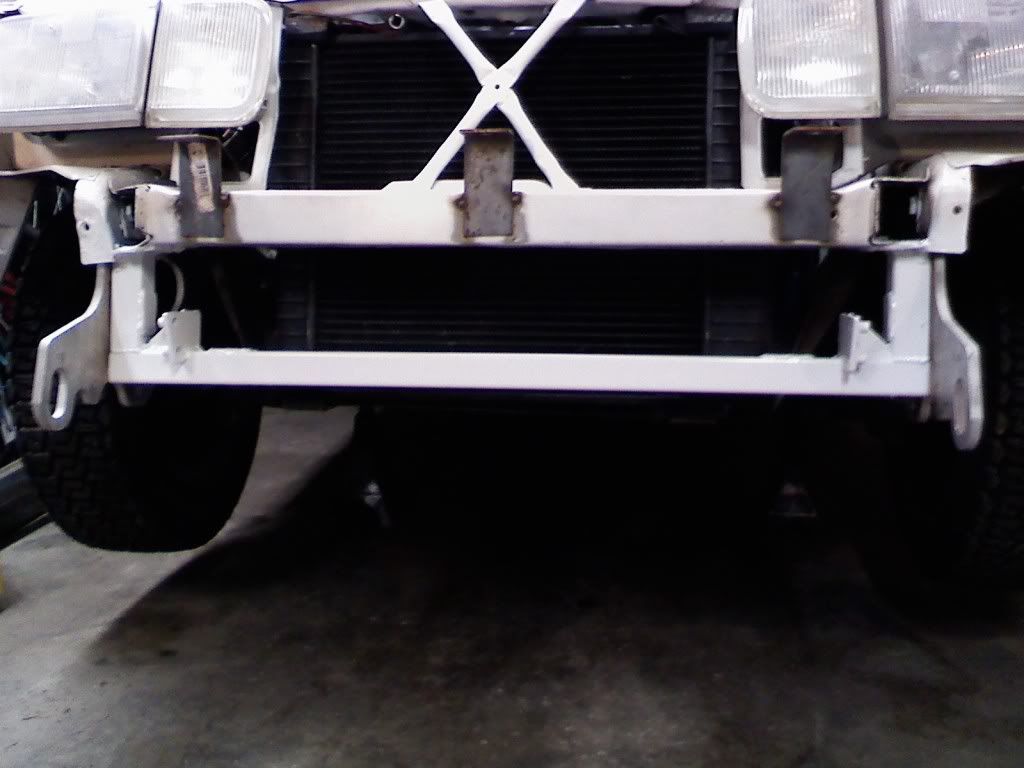

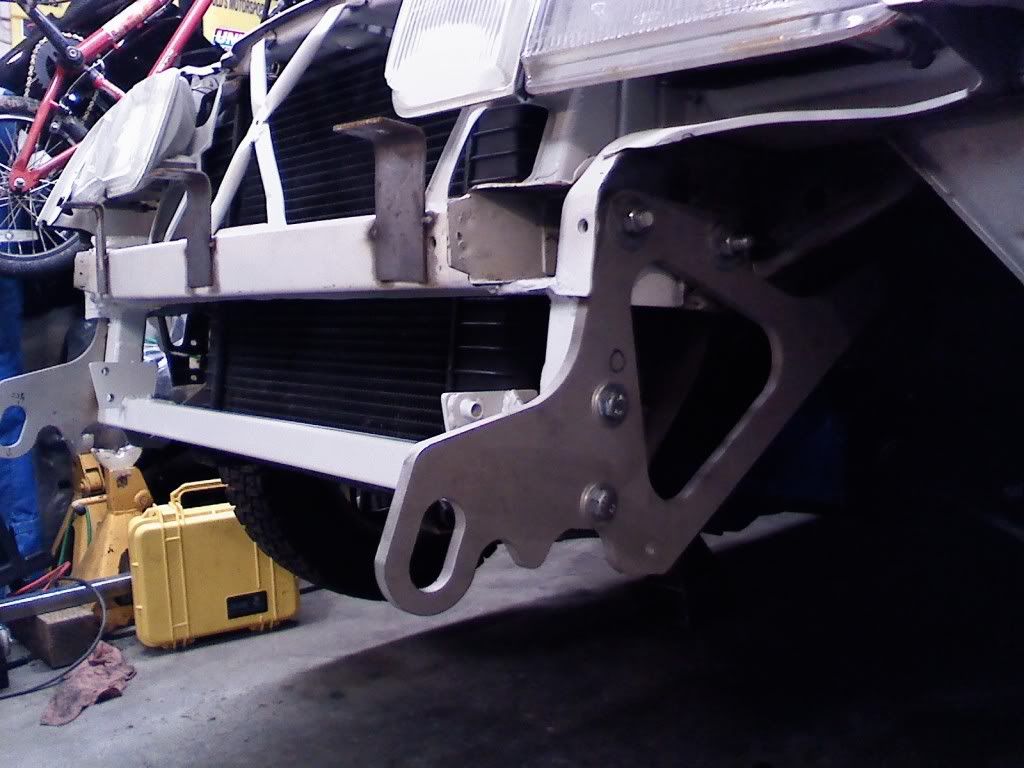

Front mount is .125 wall 1.5inch square tube, the verticals are welded to a plate, that is welded to the bottom of the frame rails, and the sides of the verticals have weld nuts in them, and are bolted to the JVAB tow hook/ Jack point/ skid plate mount ting, that is thick alloy plate. The plate is bolted to the frame rail in 3 spots.
the rear skid plate mounts. I made an extension that comes down Vertically from the frame rail, welded a plate to the rail, welded the extension to the plate, capped the open end with a 10x1.5 weld nut on the backside of the plate. That is the black piece (hard to see) The white horizontal part, bolts to the back of the crossmember, and bolts to the vertical. It has a 10x1.5 weld nut in it for the skidplate.
The skid plate is a Kevlar one that came off of an evo8. it was cracked in the front from a tree impact. I cut out all of the damage, I did not need that part anyway. Trimmed off the vertical side pieces. it is secured with 4 bolts, all 4 are recessed about an inch. It is burly
And my $80 light bar
|
Robert Gobright Mod Moderator Location: White Center Seattle Join Date: 04/27/2008 Age: Possibly Wise Posts: 1,292 Rally Car: 91 VW GTI 8V |
Dave Coleman Senior Moderator Location: Long Beach, CA Join Date: 05/13/2007 Age: Possibly Wise Posts: 448 Rally Car: Mazda3, SE-R Spec-V, 510 |
John Vanlandingham Infallible Moderator Location: Ford Asylum, Sleezattle, WA Join Date: 12/20/2005 Age: Fossilized Posts: 14,152 Rally Car: Saab 96 V4 |
Banned Elite Moderator Location: Calgary, AB Join Date: 03/27/2009 Age: Ancient Posts: 1,798 Rally Car: (ex)86 RX-7(built), (ex)2.5RS (bought) |
phlat65 Wrote:
------------------------------------------------------- ...Trimmed off the vertical side pieces. it is secured with 4 bolts, all 4 are > recessed about an inch. It is burly You do realize that the vertical side pieces add a whole bunch of torsional rigidity to the skid plate don't you? Particularly if it is unsupported between the front and rear mounts I think you'll be disappointed in its performance if you ever put it to the test. You'll also want to try and seal your cuts with resin - Kevlar is hugely absorbent and the skidplate will destroy itself in no time if it isn't sealed. The mounting points will be vital. (the kevlar will expand and contract with damp/dry and the resin will come apart making the area weak.) (and before anyone writes this off as the ramblings of just a photographer - I have a lot of experience with light weight composites from my r/c glider hobby.) First Rally: 2001 Driver (7), Co-Driver (44) Drivers (16) Clerk (10), Official (7), Volunteer (4) Cars Built (1), Engines Built (0) Cages Built (0) Last Updated, January 4, 2015
|
Sean Medcroft Elite Moderator Location: Edmonds, Washington Join Date: 02/12/2009 Age: Possibly Wise Posts: 1,802 Rally Car: Building a Merkur |
Andrew Frick Mod Moderator Location: Greenville, SC Join Date: 05/18/2007 Age: Midlife Crisis Posts: 684 Rally Car: Rally Spec Ford Focus |
John Vanlandingham Infallible Moderator Location: Ford Asylum, Sleezattle, WA Join Date: 12/20/2005 Age: Fossilized Posts: 14,152 Rally Car: Saab 96 V4 |
Dave Coleman Senior Moderator Location: Long Beach, CA Join Date: 05/13/2007 Age: Possibly Wise Posts: 448 Rally Car: Mazda3, SE-R Spec-V, 510 |
Sean Medcroft Elite Moderator Location: Edmonds, Washington Join Date: 02/12/2009 Age: Possibly Wise Posts: 1,802 Rally Car: Building a Merkur |
Banned Junior Moderator Location: John and Skyes Magic Love liar Join Date: 08/24/2007 Posts: 2,154 |
Dave Coleman Senior Moderator Location: Long Beach, CA Join Date: 05/13/2007 Age: Possibly Wise Posts: 448 Rally Car: Mazda3, SE-R Spec-V, 510 |
david amor Senior Moderator Location: Stoney Creek Ontario Join Date: 03/22/2006 Age: Possibly Wise Posts: 458 |
Banned Junior Moderator Location: John and Skyes Magic Love liar Join Date: 08/24/2007 Posts: 2,154 |
david amor Senior Moderator Location: Stoney Creek Ontario Join Date: 03/22/2006 Age: Possibly Wise Posts: 458 |
